SINOTRUK HOWO 40 Tons Rotator Tow Truck 8x4 Heavy Duty Roadside Assistance

Product Categories

Hubei Runli Special Automobile Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Hubei, China

Brand Name : SCS

Packaging Details : Nude package

Supply Ability : 200 Unit/Units per Month

Price : CN¥495,302.95-562,548.46/units

Fuel Type : Diesel

Emission Standard : Euro 2

Condition : New

Transmission Type : Manual

Dimensions (L x W x H) (mm) : 11260*2500*3570

Product name : rotator tow truck

Chassis brand : Dongfeng Sinotruk Faw Bei Ben Tow

Driving type : 8*4

Usage : Road Emergency Rescue

Warranty : 12 Months Guarantee

Certificate : CCC ISO9001

Lifting weight : 20ton 30ton 40ton 50ton

Engine model : WD615.47

Winch : 2*15 Tons KN

Color : Customized

Port : shanghai/tianjin/wuhan/shenzhen

Contact Now

Product Description

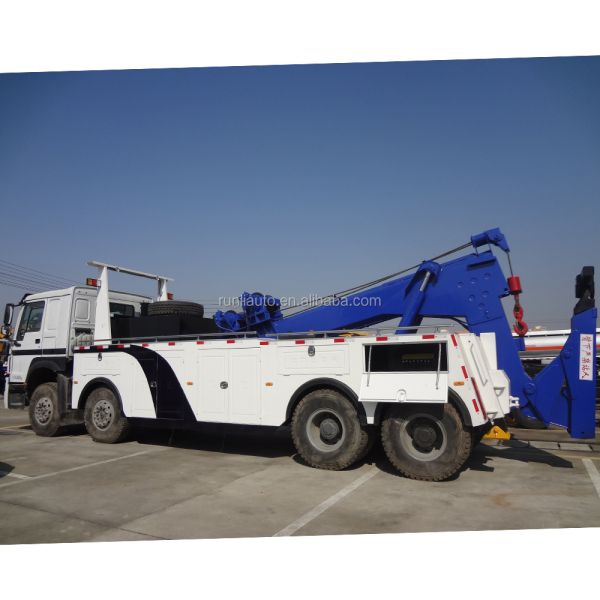

SINOTRUK HOWO 40 Tons Rotator Tow Truck 8x4 Heavy Duty Roadside Assistance

Cabin	A/C installed,2~3 persons,LHD,electric window
Model	SCS5380TQZZDZ
No load(kg)	Curb Weight	32070
	Front axle	9 TONS
	Rear axle(double)	16 TONS
Full load	Max. Overall Weight	38000
Overall Dimensions(mm)	Length	11260
	Width	2500
	Height	3570
Wheel base(mm)	1800+4600+1350
Driving Model	8*4
Tyre	12.00R20
Engine	Model	WD615.47
	Power(kw)	273
	Displacement(mL)	9726
Transmission	HW19710,10forwards&1 reverses

Wrecker Equipment
Max. Towing Weight(kg)		30000
Lifting System	Max. Lifting Weight(kg)	10000
	Max. Lifting Weight under all extension(kg)	8000
	Lifting Weight in Situ(kg)	18000
	Max. Ground Distance(mm)	900
Hoisting System	Max. Hoisting Weight(kg)	18000
	Max. Hoisting Weight under all extension(kg)	8000
	Extension Distance of Oil Cylinder(mm)	6000
	Length of crane Arm(mm)	8470
	Max. Hoisting Height(mm)	6500
Winch	No.	2
	Curb Traction/Per(KN)	150
	DN of Steel Rope(mm)	Φ20
	Length of Steel Rope(m)	40*2
	Min. Line Speed(m/min)	5
Outrigger	No.	2
	Outrigger Span(mm)	1440
	Landing Strength(KN)	80*2
Crane	360°rotate
Lifting Forks	5 pairs
Lifting fork base	1 pair
Jump-start cables	12~24 Volts
Electric system	Rear working lamp(stop,tail,turning)	3
	Revolving beacon	1
	Lamps for license plate/warning lamp	1 set
Pneumatic hoses	1 set
